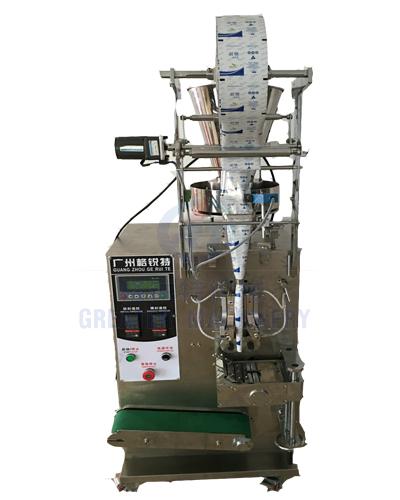

Three sided sealing granule packaging machine

壹、Product Introduction:
Suitable for automatic packaging of loose, non sticky small particles and materials in food, medicine, and chemical products,

 such as desiccants, monosodium glutamate, laundry detergent, tea, sugar, salt, seeds, coffee, beverages, granules, cereal, etc.

二(er)、Technical parameters:
Model: GRT-60K
Production capacity: 20-50 bags per minute
Measurement range: 1-500ML (customizable according to customer requirements)
Bag size: (L) 40-160 (W) 40-100mm
Sealing form: back sealing, three side sealing or four side sealing

Packaging materials: paper/polyethylene, polyester/aluminum foil/polyethylene, nylon/polyethylene, tea filter paper, etc
Total power: 1.6KW
Power supply voltage: 220/380V 50-60HZ
Machine weight: 165KG
Machine size: 980x850x1870mm
三、Performance characteristics:
1. Adopting PLC control system and displaying in both Chinese and English. The packaging speed should be consistent with the bag length.
2. The system adopts stepper motor control, which has high precision, good performance, low noise, and excellent stability.
3. The sealing mold adopts a heating tube heating mode to ensure the integrity and sealing of the sample bag, while also enabling efficient production.
4. This machine can achieve the function of being versatile by replacing measuring cup accessories and adjusting product weight.

5. Automatically complete all tasks such as measuring, bag making, filling, sealing, cutting, and counting.
6. When packaging materials have color coded points, they can maintain the complete product pattern of the sample bag.
