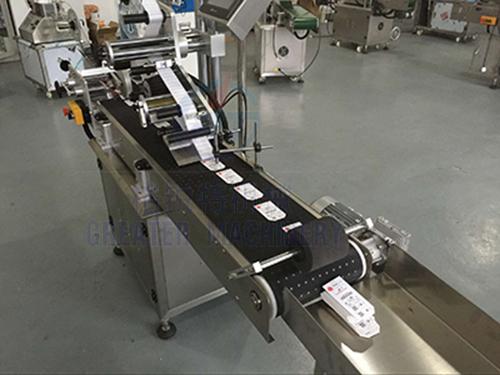

Fully automatic card pagination labeling machine

壹、 Product Introduction:
The paper box card pagination labeling machine
adopts a product guided gap elimination mechanism and a label anti deviation mechanism, with a labeling positioning accuracy of up to 0.5mm; Good labeling stability, flat, wrinkle free, and bubble free labeling, which can meet the requirements of labeling on most flat and large curved surfaces of products.

二、 Technical parameters:
Applicable product range: Width 70-150 (mm) Thickness 0.2-5 (mm)
Applicable label range: Width 20-100 (mm), Length 50-300 (mm)
Rated voltage: 220V/50Hz
Whole line power: 1400W
Dimensions: 2500 × 900 × 1300 (mm)
Theoretical labeling speed:>100 sheets/minute

Labeling accuracy: ± 1-2 MM

三(san)、 Performance characteristics:
1. The vacuum conveyor belt automatically adsorbs materials onto the conveyor belt, avoiding material displacement problems and ensuring stable and accurate pagination function.

 The entire machine adopts a mature PLC control system, which ensures stable operation and high-speed universal pagination device.

No replacement parts are needed for any diameter of sheet materials, and automatic pagination and labeling of various sizes of sheet materials can be quickly adjusted and positioned.
2. 7-inch color screen, branded PLC system, easy to operate, practical, and stable in performance.
3. The labeling speed, conveying speed, and pagination speed of the card pagination labeling machine can be adjusted as needed.
4. Using elastic cotton rollers, the labeling is smooth and wrinkle free, improving the quality of product labeling.
