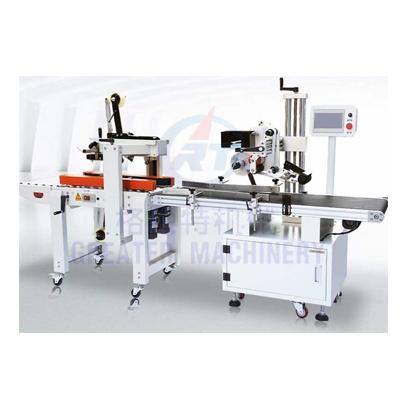

Name：Carton flat labeling machine

壹、 Product Introduction:
This machine is specifically designed for cardboard boxes. Due to the wide and large size of the outer packaging cardboard boxes, the size of the conveyor belt will also increase, and it can also be customized for assembly line labeling.

二、Technical parameters:
1. Power supply: 220V, 50-60HZ 450W
2. Labeling speed: 0-25 meters/minute
3. Labeling accuracy: ± 1mm
4. Label width: 10-120mm
5. Product width: 50-500mm
6. Label roll diameter: Paper roll inner diameter 76mm, outer diameter (maximum) 360mm
7. Machine dimensions: 2000 * 1100 * 1550mm.
三(san)、Local performance characteristics:
1. PLC combined with human-machine interface, intuitive operation, simple and clear
2. The whole machine is made of stainless steel and aluminum alloy, with a generous and simple appearance.
3. This machine has functions such as bottle alignment, fitting, label smoothing, counting, etc
4. The position of the label can be adjusted
5. Can be connected to conveyor belts for use on production lines
6. We can customize various special models according to customer requirements.
